Wouldn't it be cool if you could create a website by dragging and dropping pieces of it around? To some it sounds like a green-weaved nightmare, to others it sounds like a proprietary platform — but this fantasy of freedom is becoming closer to being standardized into modern design and development workflows. With software like OpenChakra, Blocks UI, or even Playroom — we've gotten a taste today of what platforms like Framer, Modulz, and other's have promised to use in an unforeseen future: design to code.

So I got to thinking, how would you actually make a UI for building sites with components (like Figma or Sketch) and then export that to code?

And by thinking, I mean researching, reverse engineering, conceptualizing, and inevitably coding: design-system-builder. A small React app that accepts Reacts components to drag and drop into an "artboard" or "canvas", and then exports that to React code (or JSX) you can import into your project.

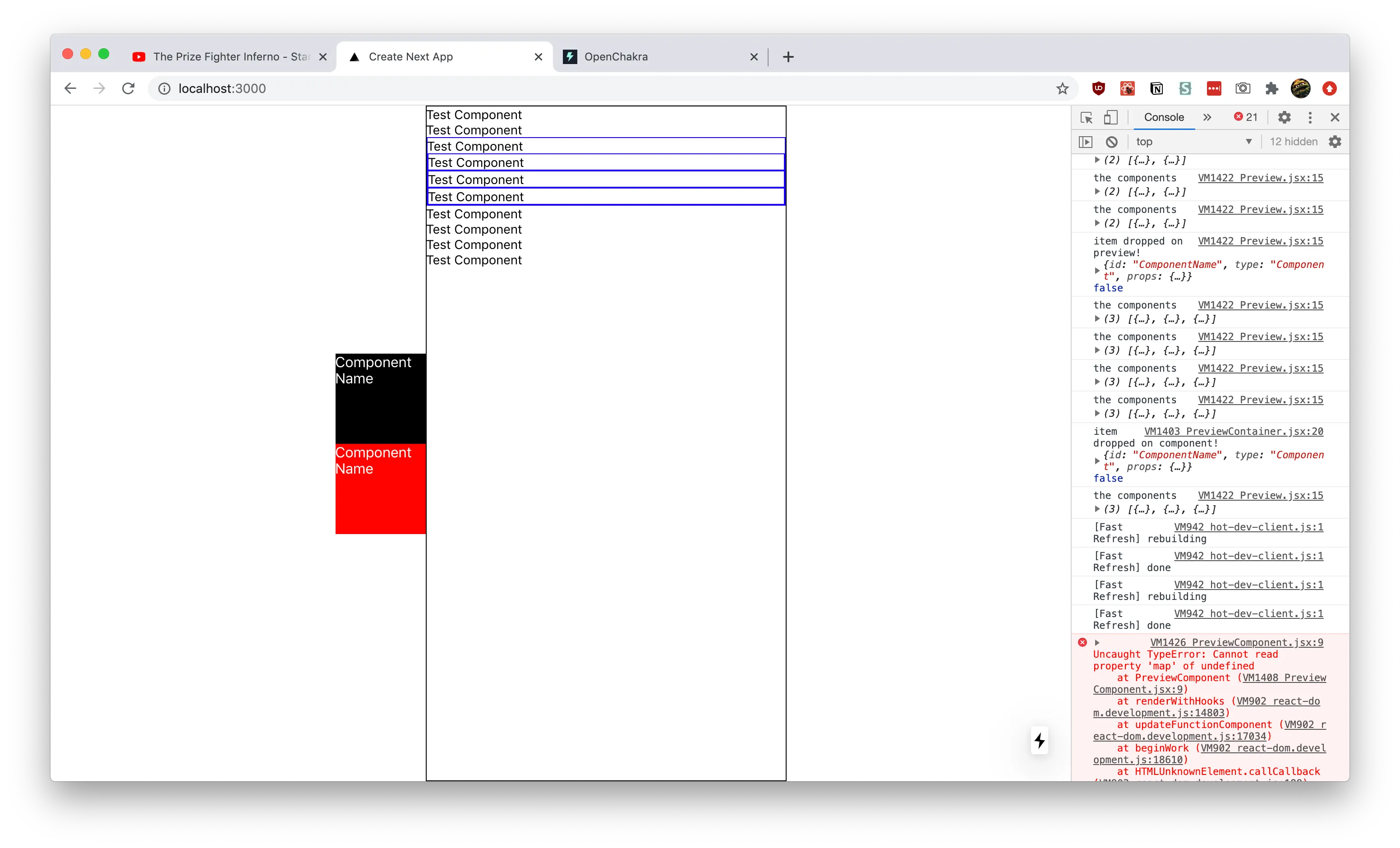

The drag and drop builder in action. Two test components are displayed in the left sidebar as black and red boxes. The preview window occupies the middle of the screen as a black bordered box that renders a list of components. Blue bordered components in the preview box represent nested components

Check out of the source code here, or read on to discover how I built it.

Research

When you know something already exists, or even if you don't, the best place to often start is research. I already knew about OpenChakra, Blocks UI, and Playroom, so I started there. I reverse-engineered each project to see how it worked, and took notes on it.

To give you an idea of how I approach this process for a software project:

  • I check out the package.json (or equivalent file like composer.json in PHP) to see what dependencies they're using. This usually gives you a great idea of how they handle core functionality. In this case, if there was drag and drop involved, react-dnd was found.
  • Next begins the hunt for the "start" file. Sometimes this is listed in the package.json as the start script, often as a framework or library (like Gatsby or Next) which makes it easier to determine the starting point. Otherwise it may be under the main, which will be the root of the app. For OpenChakra, it was a Next app. But for Blocks UI, it was a monorepo, so I had to find the right package in /packages/ — then it was a Gatsby project.
  • From there, I try to find what's rendering the core functionality (aka the drag and drop builder). In this case, they were often a single component I could trace it back to.
  • Once you're in the component, you can often find everything you need, like imported utilities, hooks, configs, etc. Sometimes you might have data that just "appears" in a component and isn't passed down naturally, but that's usually some framework magic (like Gatsby's GraphQL page generation).

So let's check out the breakdown of each project:

OpenChakra

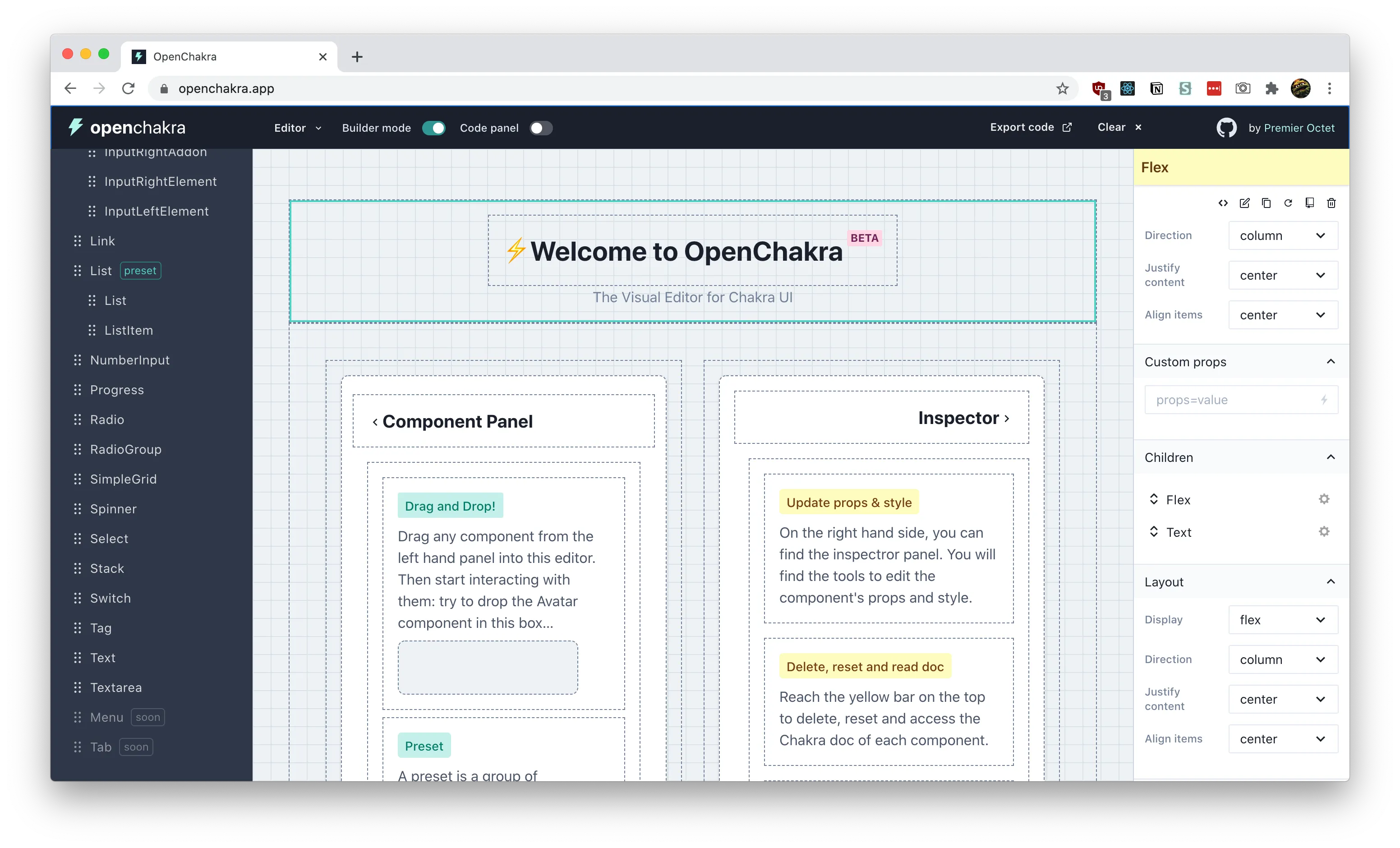

Screenshot of OpenChakra in action

How does it work?

  • NextJS app (originally CRA)
  • Built with Chakra UI
  • Uses Redux to manage state
  • Uses react-dnd for drag and drop effect and adding functionality to components (useDrag)
  • Makes a JSON list of components (componentsList.js) and uses that to generate the sidebar
  • Uses a <PreviewContainer> component to wrap all the components dragged and dropped into the editor. This is what creates the "box" effect and also allows interactivity.
  • How would you add a custom component?
    • Components are listed in componentsList.js
      • Used for the sidebar to define the menu structure
    • You also need to make sure the component is listed inside src/components/editor/ComponentPreview.tsx - this has a giant switch for each component (and special preview containers for certain more complex components)
      • This is where you should import your custom components
    • Need a special panel for each component that gets imported here src/components/inspector/panels/Panels.tsx
    • Default props for each component are located here src/utils/defaultProps.tsx
    • Components are also listed here src/utils/editor.ts
      • Used for the useDropComponent hook

Takeaways

  • Can't drop items between eachother in the preview (or "Builder mode"). But you can in the sidebar (a kind of "Layers" panel), and you can reorder them there.
  • Really hardwired to Chakra in a couple of places, but not too hard to create conditionals (or just remove it)
    • For example, the ComponentPreview uses the Chakra library to grab the component (Chakra[componentName]). I created a new switch case that imports a custom component instead.
    • Panels assume every component uses Styled System utility props. But it's easy to add custom panels based on your prop needs.
  • Really verbose. There's like 5 places to add the component, feels like there's a lot of duplication. But it's nice allowing custom panels, with custom prop setups.
  • Elegant DX with bug monitoring and cache clearing 👏💯🐛 I appreciate that errors can be minimized, and the app knows when it's corrupted and has a button to clear cache.

Adding a custom component

I went through the process of adding a custom component to OpenChakra (outlined roughly above). You can see it on my Github in a custom-components branch.

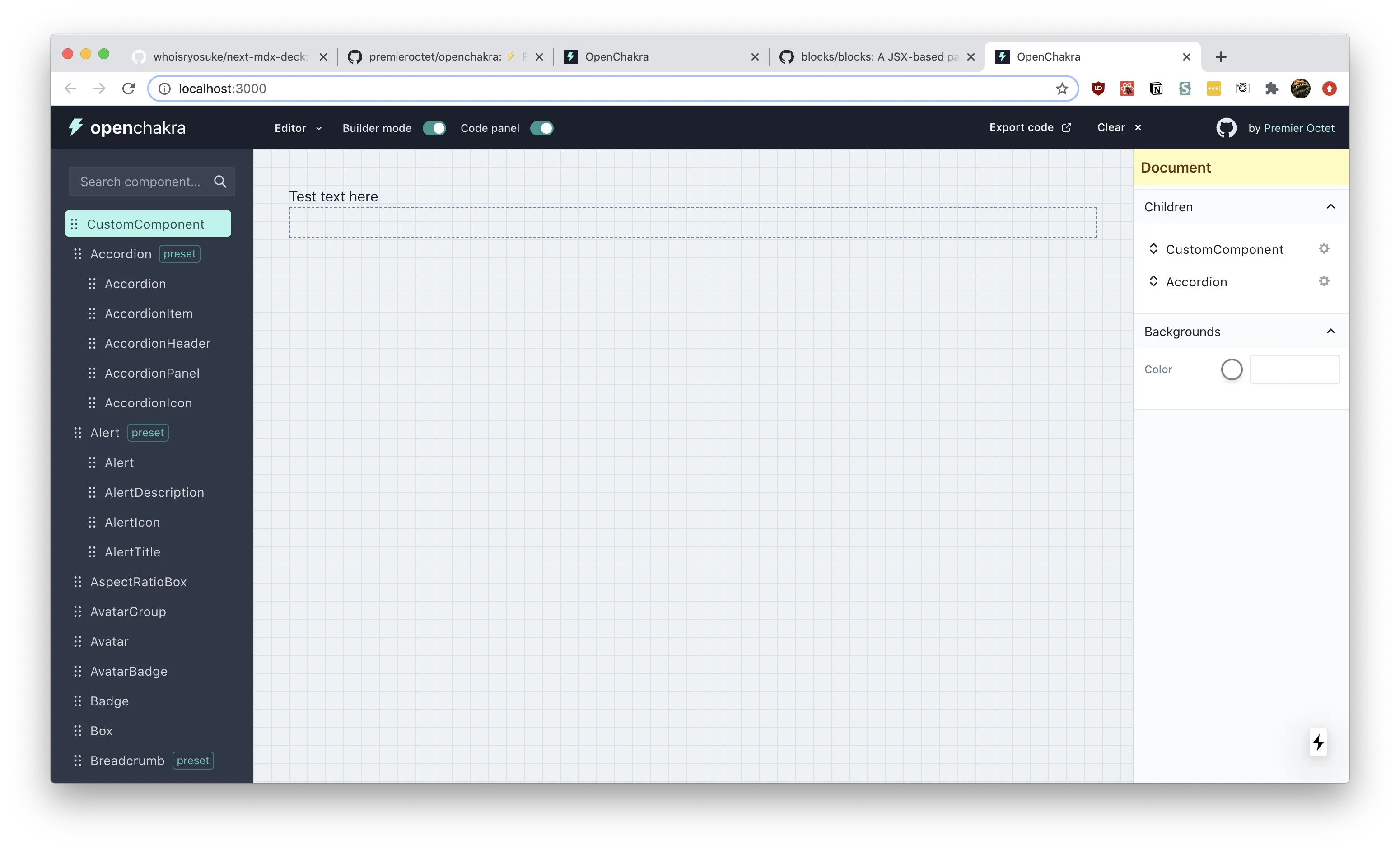

Screenshot of the OpenChakra app with a custom component inserted

whoisryosuke/openchakra

Blocks UI

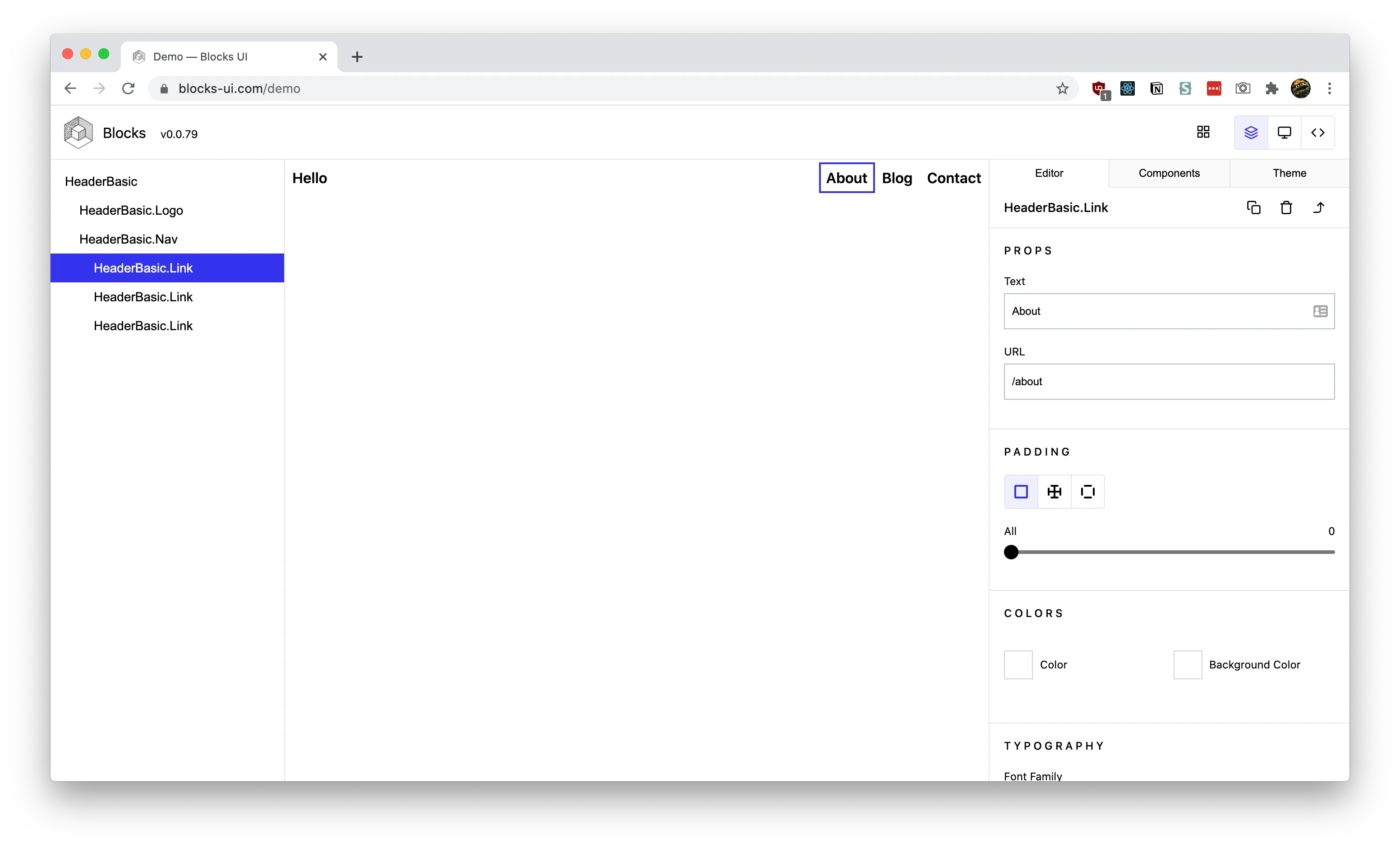

Screenshot of Blocks UI in action

How does it work?

  • GatsbyJS (but can be any frontend, just use <Editor> component)

  • Has a weird monorepo setup that requires you to prebuild all the packages before running

  • Everything happens on /demo page (or /pages/demo.js)

    • Imports the <Editor> from the Blocks UI package
    • Passes sample JSX into src prop
    • Passes components into the blocks prop. Default blocks are imported from the Blocks UI/React package
    • You can also pass a layout wrapper using the prop

  • Renders React components in a preview using Function and React.createElement

    const element = useMemo(() => {
  if (!code) {
    return null;
  }

  /* eslint-disable */
  const fn = new Function(
    "React",
    ...Object.keys(scope),
    `${code};
      return React.createElement(BLOCKS_Container)`
  );
  /* eslint-enable */

  return fn(React, ...Object.values(scope));
}, [code]);

  • Components are created normally, but if you want to make them editable, they require the property-controls package (also part of the monorepo)

    • This small package basically adds an extra attribute to your component (e.g. Button.propertyControls — like defaultProps) with the controls you specify
    • They also require a usage attribute on the component that has a string literal containing the a JSX example of the component

Takeaways:

  • Can't do complex layouts like flex-based things (2+ column layouts) unless it's a pre-coded component. Makes it difficult to compose things.
  • Very black box in it's implementation where you get a component, and have to dig into a separate package to find things.
  • The requirement of default usage makes importing any component library tedious because it requires a special prop (usage) and working examples

Playroom

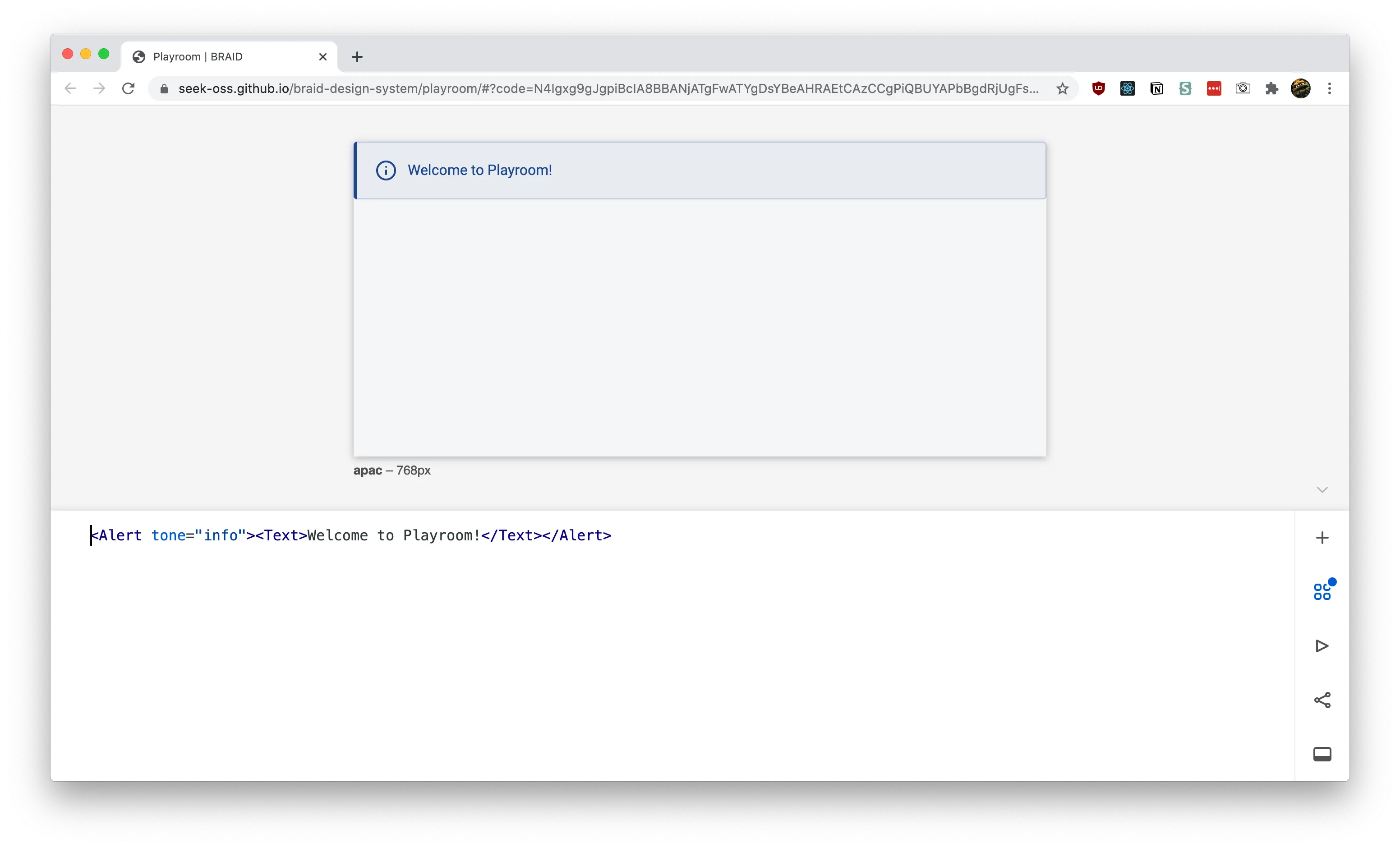

Screenshot of Playroom in action

📚 Summary

  • OpenChakra uses a Redux store to keep names of components. The preview window reads from the Redux store and renders all the components using a giant switch statement that render the appropriate component (inside a wrapper component that handles drag and drop).
  • Blocks UI provides an <Editor> component that accepts JSX. It renders the components by creating a new Function using the provided JSX and rendering that in React.
  • Playroom parses JSX with Babel and then renders it using scope-eval. Makes more sense this way since it's more code based, than a drag and drop editor.

Planning

After a sufficient amount of research, I set out to plan out the feature set of an MVP product.

Architecture

  • User drags a component from a list of components
  • Drops onto preview area ("canvas", "artboard", "frame", etc)
  • Preview stores component data into context
  • Preview displays context data as real components
  • Preview components are wrapped in a controlled container to allow for actions like selecting/focusing
  • Exports code
  • Sidebar has a "layers" panel with a list of all the components (in a tree, so nested components are available by dropdown)
    • Components can be dragged into different spots to reorder
    • Edit button on side of button takes you to props edit panel
  • Support React and React Native

"Would be nice"

  • Undo (action list in context to traverse through (like redux))
  • Keyboard shortcuts (Delete, CTRL+Z for undo)
  • Export code to CodeSandbox

I definitely didn't complete all these, but just outlining these from the outset helps the development process immensely.

Structuring the Data

Now that I knew I was going to use the state to store the component data (similar to OpenChakra), I wanted to structure how it'd look. I also needed to create structured data types react-dnd.

Drop object

For the "drop" to work with react-dnd, you need to attach data to the object you're dropping to let the "drop area" know what it's accepting. The id is basically the component name. And you can set a type, so if it doesn't match, it won't accept the drop (to allow multiple drop points in an app). In this case, we signify the type is a "Component" (which I made constant in my app called DATA_TYPES and stored it as a object property there).

{ id: "ComponentName", type: "Component" }

Handling children

For the structure of the React state (or context), I wanted to make sure that it could support an infinite amount of children. That way, we could nest components as deep as needed, and recursively render it.

It was pretty easy. I added a children property to the object with an array of more "component" objects. When we render, we check for the children property and render as needed.

[ { name: 'ComponentName'} { name: 'Flex', props: {} children: [ { name:
'ComponentName', props: {}}, { name: 'ComponentName', props: {}}, ] } ]

Rendering components dynamically

Figuring out this part of the app makes everything basically possible, and thanks to React, it's incredibly simple.

You use React.createElement with a component name (and props) to generate a component dynamically. We also store all the components in a single object to make it easier to look them up using a hash map named PreviewComponents (and safer, since you won't be calling random function names).

const PreviewComponents = {
  Box,
  Button,
  Input,
};
const componentPreview =
  components.length > 0 &&
  components.map((component, index) => {
    if (typeof PreviewComponents[component.name] !== "undefined") {
      return React.createElement(PreviewComponents[component.name], {
        // @TODO: Use a hash here?
        key: index,
        ...component.props,
      });
    }
  });

Prototyping

To develop the initial prototype, I used NextJS to quickly bootstrap a React project. I then added react-dnd, and setup a simple drag and drop example using a placeholder box and preview container. When you drag the box into the preview, the "drop data" was displayed to the console.

From there, I created a context for the components to be stored in, then wired up the preview (or "drop area") to send the "drop data" to the context.

// contexts/ComponentsContext.js
import React, { createContext, useContext, useState } from "react";
const ComponentsContext = createContext([]);

const ComponentsProvider = ({ children }) => {
  const [components, setComponents] = useState([]);

  return (
    <ComponentsContext.Provider value={{ components, setComponents }}>
      {children}
    </ComponentsContext.Provider>
  );
};

const useComponents = () => useContext(ComponentsContext);

export { ComponentsContext, ComponentsProvider, useComponents };

// components/Preview.jsx
import React, { useCallback, useState } from "react";
import { Box } from "rebass/styled-components";
import { useDrop } from "react-dnd";
import { DRAG_TYPES } from "../constants/DragTypes";
import { useComponents } from "../contexts/ComponentsContext";
import PreviewComponent from "./PreviewComponent";

export default function Preview() {
  const [focused, setFocused] = useState(null);
  const { components, setComponents } = useComponents();
  const [{ isOver, isOverCurrent }, drop] = useDrop({
    accept: DRAG_TYPES.COMPONENT,
    drop(item, monitor) {
      const didDrop = monitor.didDrop();
      if (didDrop) {
        return;
      }
      console.log("item dropped on preview!", item, didDrop);
      const componentStructure = {
        name: item.id,
        props: {},
        children: [],
      };
      setComponents((prevValue) => [...prevValue, componentStructure]);
    },
    collect: (monitor) => ({
      isOver: monitor.isOver({ shallow: true }),
      isOverCurrent: monitor.isOver({ shallow: true }),
    }),
  });

  console.log("the components", components);
  const componentPreview =
    components.length > 0 &&
    components.map((component, index) => (
      <PreviewComponent index={index} component={component} focused={focused} />
    ));
  return (
    <Box
      ref={drop}
      width="400px"
      height="100vh"
      sx={{ border: "1px solid black" }}
    >
      {componentPreview}
    </Box>
  );
}

Then I refactored the preview to use the context state to display the context data, which was an array of component names. I displayed them as strings first (as a sanity check), then integrated the dynamic render using React (discussed above). I created a recursive walkChildren function that goes through and renders all children (and children of children).

// components/PreviewComponent.jsx
import React from "react";
import ComponentName from "../components/ComponentName";
import PreviewContainer from "./PreviewContainer";

const PreviewComponents = {
  ComponentName,
};

export default function PreviewComponent({
  component,
  index,
  focused,
  clickHandler,
}) {
  if (typeof PreviewComponents[component.name] !== "undefined") {
    const walkChildren = (children) => {
      if (children.length > 0) {
        return children.map((childComponent) => {
          const NewChildComponent = React.createElement(
            PreviewComponents[childComponent.name],
            {
              ...childComponent.props,
              children: walkChildren(childComponent.children),
            }
          );
          return React.createElement(
            PreviewContainer,
            {
              index,
              onClick: clickHandler,
              focused: focused === index ? true : false,
            },
            [NewChildComponent]
          );
        });
      }
      if (typeof children === "string") {
        return children;
      }
    };
    const NewComponent = React.createElement(
      PreviewComponents[component.name],
      {
        // @TODO: Use a hash here?
        key: index,
        ...component.props,
        children: walkChildren(component.children),
      }
    );
    return React.createElement(
      PreviewContainer,
      {
        index,
        onClick: clickHandler,
        focused: focused === index ? true : false,
      },
      [NewComponent]
    );
  }
}

Once I was able to display top level components, I worked on nested children. Each component that gets displayed in the preview had to get wrapped in a new component that was essentially a new "drop area" (so we'd have one big preview drop, then smaller drops for components). Inside this wrapper, I connected it to the context to add new components when they're dropped. This component also needed to dynamically render, since it's passed a component object that may have the children prop (more more component objects).

// components/PreviewContainer.jsx
import React, { useCallback } from "react";
import { Box } from "rebass/styled-components";
import { useDrop } from "react-dnd";
import { DRAG_TYPES } from "../constants/DragTypes";
import { useComponents } from "../contexts/ComponentsContext";

export default function PreviewContainer({
  index,
  focused = false,
  onClick,
  children,
  ...restProps
}) {
  const { components, setComponents } = useComponents();
  // Handle dropping components for nested children
  const [{ isOver, isOverCurrent }, drop] = useDrop({
    accept: DRAG_TYPES.COMPONENT,
    drop(item, monitor) {
      const didDrop = monitor.didDrop();
      console.log("item dropped on component!", item, didDrop);

      if (didDrop) {
        return;
      }
      setComponents((prevValue) => {
        const childComponent = {
          name: item.id,
          props: {},
          children: [],
        };
        const componentStructure = {
          ...prevValue[index],
          children: [...prevValue[index].children, childComponent],
        };
        return [
          ...prevValue.slice(0, index),
          componentStructure,
          ...prevValue.slice(index + 1, prevValue.length + 1),
        ];
      });
    },
    collect: (monitor) => ({
      isOver: monitor.isOver({ shallow: true }),
      isOverCurrent: monitor.isOver({ shallow: true }),
    }),
  });
  const clickHandler = useCallback(() => {
    onClick(index);
  }, [onClick]);
  return (
    <Box
      ref={drop}
      onClick={clickHandler}
      sx={{ border: focused && "1px solid blue" }}
      {...restProps}
    >
      {children}
    </Box>
  );
}

React Native support

I was able to display a sample React component, but I wanted to be able to display native components using react-native-web. Thanks to Expo, they make the process easy with their Webpack config and NextJS example.

I followed the guide for adding Expo to an existing NextJS project and I was able to start using React Native components (like <View> and <Text>). You basically install an adapter, run it, and it generates (and modifies) the necessary files.

Demystified?

After building it from scratch, I just kept looking at the feature list and thinking about how much work goes into this. One look at OpenChakra and how polished of a product it is (despite being alpha/beta) and you can see how far you can go with this kind of software.

But I hope seeing the how the core functionality of the drag and drop builders works, you can start to see the wires behind experiences like Figma or Framer.

Let me know if you have any questions in the comments or on my Twitter, and let me know if you build anything with this!
